Features of vacuum circuit breakers

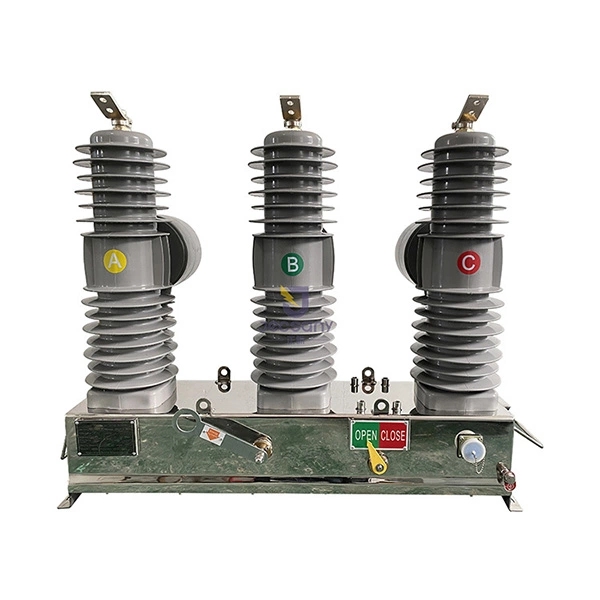

Vacuum circuit breakers (VCBs) are electrical switching devices used to interrupt or break the flow of electric current in high-voltage electrical power systems. They are commonly used in power distribution systems, power generation plants, substations, and industrial applications where reliable and efficient circuit protection is essential.

The main components and features of vacuum circuit breakers include:

1. Vacuum Interrupter: The heart of a vacuum circuit breaker is the vacuum interrupter, which is a sealed chamber made of ceramic or glass that contains a pair of contacts. When the breaker is closed, the contacts are held in close proximity. When the breaker is tripped or opened, the contacts are quickly separated within the vacuum interrupter, extinguishing the arc that forms between them due to current interruption.

2. Operating Mechanism: Vacuum circuit breakers are equipped with an operating mechanism that controls the opening and closing of the contacts. The operating mechanism can be manual, motor-operated, or spring-operated for remote and automatic control.

3. Insulating Enclosure: VCBs are housed in a robust and insulated enclosure to ensure electrical safety and protect against external influences.

4. Arc Chutes: Arc chutes are designed to guide and lengthen the arc produced during current interruption. They help in cooling and deionization of the arc gases, increasing the dielectric strength of the vacuum interrupter.

5. Control and Protection System: Modern vacuum circuit breakers may incorporate advanced control and protection systems, which can provide overload protection, short-circuit protection, and other features to enhance the safety and reliability of the circuit breaker.

Advantages of Vacuum Circuit Breakers:

- High Dielectric Strength: Vacuum interrupters offer excellent dielectric strength, allowing for effective interruption of high-voltage currents.

- Maintenance-Free: Vacuum circuit breakers are generally considered maintenance-free because there is no need to replace or refill the insulating gas during their lifespan.

- Fast Operation: VCBs provide fast and reliable interruption of current, making them suitable for high-speed protection of power systems.

- Environmentally Friendly: Vacuum circuit breakers are considered more environmentally friendly compared to other types of circuit breakers that use insulating gases.

- Compact Size: Vacuum circuit breakers are generally compact and occupy less space compared to other types of high-voltage circuit breakers.

Vacuum circuit breakers are a popular choice for medium and high-voltage applications where reliable and efficient switching and protection are required. Their fast operation and maintenance-free nature make them suitable for critical power systems, contributing to the stability and reliability of electrical networks.
