Choosing the Right Size: Determining the Appropriate Large Diameter Stringing Blocks for Your Project

In the power line industry, selecting the appropriate size of Large Diameter Stringing Blocks is crucial for the efficiency and safety of stringing operations. The right size ensures smooth conductor installation, minimizes friction, and supports the heavy loads typical in power line projects. But how do you determine the appropriate size for your specific project? Let's explore the key factors and considerations that guide this important decision.

Understanding the Role of Large Diameter Stringing Blocks

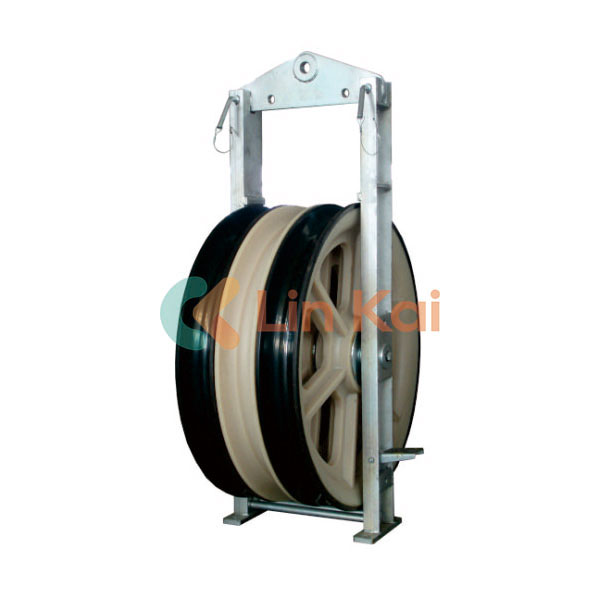

Large Diameter Stringing Blocks are essential tools used to guide and support conductors (wires or cables) during the installation of overhead power lines. Their primary function is to reduce friction and provide a smooth pathway for the conductors, ensuring they are installed efficiently and without damage.

Key Factors in Determining the Appropriate Size

1. Conductor Size and Type

  The diameter of the conductor is a primary consideration when selecting the size of the stringing block. Conductors come in various sizes and types, including aluminum, copper, and steel-core aluminum.

  - Diameter Matching: The groove of the stringing block should match the diameter of the conductor to ensure a secure fit and minimize friction.

  - Type of Conductor: Different materials have varying flexibility and strength, influencing the size of the block needed to provide adequate support.

2. Tension Requirements

  The tension applied during the stringing process affects the choice of stringing block size. Higher tension requires larger and more robust blocks to handle the stress without deforming or causing excessive friction.

  - High-Tension Applications: For high-voltage transmission lines that require significant tension, larger diameter blocks are essential to distribute the load and reduce wear on the conductor.

  - Low-Tension Applications: For lower tension distribution lines, smaller blocks may be sufficient.

3. Span Length and Terrain

  The span length between supports and the type of terrain can also influence the choice of stringing block size.

  - Long Spans: Longer spans require larger diameter blocks to handle the increased weight and tension over greater distances.

  - Challenging Terrain: Rough or uneven terrain can add stress to the conductors, necessitating larger blocks to ensure smooth operation and reduce the risk of damage.

4. Load Capacity

  The load capacity of the stringing block must be sufficient to support the weight of the conductor and any additional equipment used during installation.

  - Heavy Conductors: For heavy conductors, larger blocks with higher load capacities are required to prevent overloading and potential failure.

  - Multiple Conductors: If stringing multiple conductors simultaneously, larger blocks may be needed to accommodate the combined load.

5. Project Specifications and Standards

  Adhering to industry standards and project specifications is critical in determining the appropriate size of stringing blocks.

  - Regulatory Compliance: Ensure that the selected blocks meet all relevant industry standards and regulations.

  - Project Requirements: Specific project requirements, such as those outlined in project blueprints or technical documents, should guide the selection process.

Practical Steps to Determine the Appropriate Size

1. Consult Manufacturer Guidelines

  Manufacturers provide detailed guidelines and specifications for their stringing blocks. These documents offer valuable insights into the appropriate size and load capacity for various applications.

  - Technical Datasheets: Review the technical datasheets provided by the manufacturer to understand the capabilities and limitations of different block sizes.

  - Consultation Services: Many manufacturers offer consultation services to help you select the right product for your specific needs.

2. Perform Load Calculations

  Calculate the expected load on the stringing blocks based on the conductor size, span length, and tension requirements.

  - Load Charts: Use load charts and calculation tools to determine the appropriate block size that can safely support the calculated load.

  - Safety Margins: Always incorporate safety margins into your calculations to account for unforeseen stresses and variations in the field.

3. Conduct Field Assessments

  Assess the field conditions, including terrain and environmental factors, to ensure the selected block size is suitable for the actual working environment.

  - Site Surveys: Perform site surveys to identify any potential challenges that may affect the choice of stringing block size.

  - Adaptability: Ensure that the selected blocks can adapt to the specific conditions of your project site.

Conclusion

Determining the appropriate size of Large Diameter Stringing Blocks for a specific project involves careful consideration of conductor size and type, tension requirements, span length, terrain, and load capacity. By consulting manufacturer guidelines, performing load calculations, and conducting field assessments, you can make an informed decision that ensures the efficiency and safety of your stringing operations.
