Ensuring Quality and Performance: Types of Tests for Cylinder Pins

Introduction:

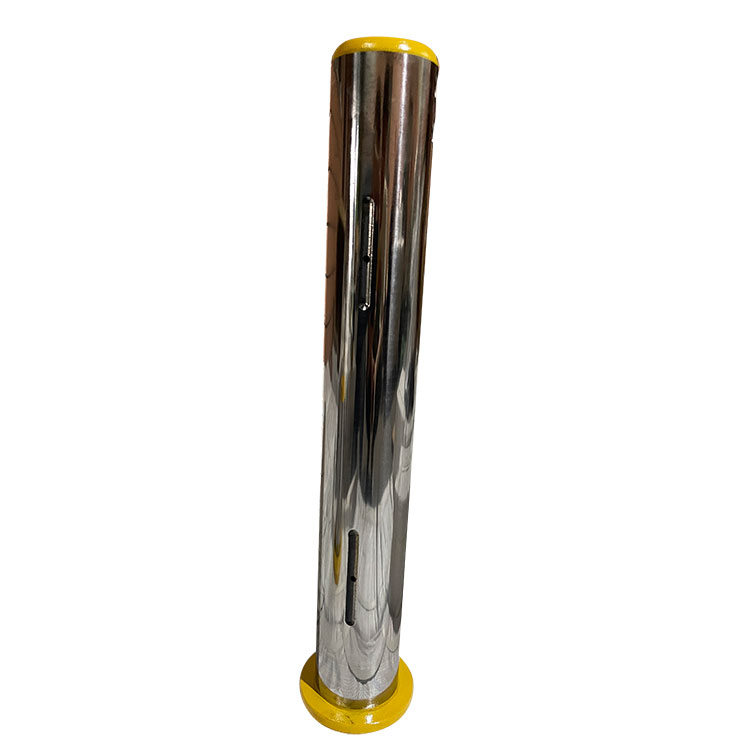

Cylinder pins are critical components in various mechanical systems, serving purposes such as alignment, support, and actuation. To ensure their reliability and performance, cylinder pins undergo rigorous testing to verify that they meet the desired specifications. In this blog post, we'll explore the types of tests typically performed on cylinder pins to ensure their quality and suitability for their intended applications.

Dimensional Testing:

Dimensional testing is essential to ensure that cylinder pins meet the specified size and tolerance requirements. This involves measuring critical dimensions such as diameter, length, and concentricity using precision instruments such as calipers, micrometers, and coordinate measuring machines (CMMs). Dimensional accuracy is crucial for proper fit, alignment, and functionality within the mechanical assembly.

Surface Finish Analysis:

Surface finish analysis assesses the quality and smoothness of the cylinder pin's surface. A smooth, uniform surface finish helps reduce friction, wear, and the risk of corrosion. Surface roughness measurements are performed using profilometers or surface roughness testers to ensure that the pin meets the required finish specifications. Visual inspections may also be conducted to detect any surface defects or imperfections that could affect performance or durability.

Material Testing:

Material testing verifies the quality and properties of the material used to manufacture cylinder pins. This includes assessing factors such as chemical composition, mechanical properties, and microstructure. Common material tests include chemical analysis, tensile testing, hardness testing, and metallurgical analysis. Material testing ensures that the cylinder pin material meets the specified requirements for strength, durability, and corrosion resistance.

Load and Strength Testing:

Load and strength testing evaluate the cylinder pin's ability to withstand applied forces and stresses without deformation or failure. These tests assess factors such as bending strength, shear strength, and fatigue resistance under various loading conditions. Tensile testing, compression testing, and fatigue testing are commonly used to evaluate the pin's mechanical properties and performance. Load and strength testing ensure that the cylinder pin can safely handle the anticipated loads and operating conditions without compromising performance or safety.

Corrosion Resistance Testing:

Corrosion resistance testing evaluates the cylinder pin's ability to resist corrosion and degradation in harsh environments. This involves subjecting the pin to corrosive substances, such as salt spray, humidity, or chemical solutions, and assessing its resistance to rust, pitting, and other forms of corrosion. Corrosion resistance testing ensures that the pin maintains its integrity and functionality over time, even when exposed to corrosive conditions.

Functional Testing:

Functional testing assesses the cylinder pin's performance and functionality within the mechanical system. This may include verifying proper fit and alignment, evaluating ease of installation and operation, and testing the pin's ability to withstand repetitive cycles and dynamic loads. Functional testing ensures that the cylinder pin meets the functional requirements of the application and performs reliably under real-world conditions.

Conclusion:

Testing is a critical aspect of ensuring the quality, reliability, and performance of cylinder pins. By subjecting cylinder pins to dimensional testing, surface finish analysis, material testing, load and strength testing, corrosion resistance testing, and functional testing, manufacturers can verify that the pins meet the desired specifications and can perform effectively within their intended applications. Investing in comprehensive testing processes helps guarantee the integrity and longevity of cylinder pins, contributing to the overall success and safety of mechanical systems.
