Exploring Input Data Interface Types in TFT LCD Modules

Introduction

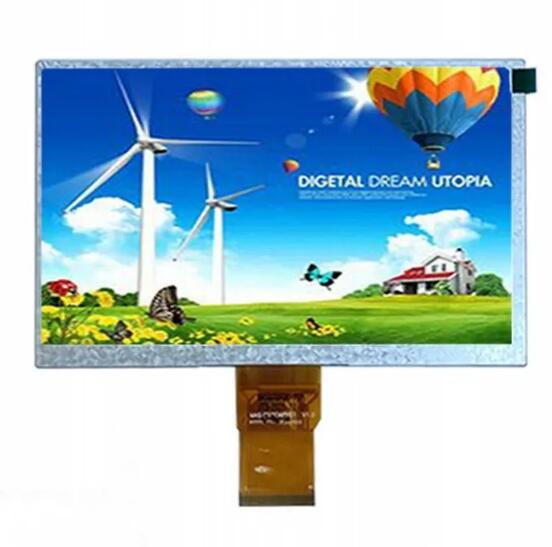

TFT (Thin Film Transistor) LCD (Liquid Crystal Display) modules are widely used in various electronic devices, from smartphones and tablets to industrial equipment and automotive displays. Understanding the different input data interface types used in these modules is crucial for selecting the right display for your application. In this blog, we will explore the common input data interface types used in TFT LCD modules and discuss their respective characteristics.

Parallel RGB Interface

The Parallel RGB interface is one of the most commonly used interfaces for TFT LCD modules. It involves transmitting red, green, and blue data signals in parallel, along with synchronization signals such as HSYNC (Horizontal Sync) and VSYNC (Vertical Sync).

Characteristics:

- High Speed: The parallel nature of this interface allows for high-speed data transfer, making it suitable for high-resolution displays.

- Complexity: It requires multiple data lines (typically 18, 24, or 30), which can complicate the PCB layout and increase the number of required pins on the controller.

- Power Consumption: Due to the multiple lines, this interface can consume more power compared to serial interfaces.

- Synchronization: Precise synchronization is required between the data and sync signals to ensure proper image rendering.

LVDS (Low Voltage Differential Signaling)

LVDS is a high-speed, low-power differential signaling system used to transmit data over longer distances with reduced electromagnetic interference (EMI).

Characteristics:

- High Speed and Low EMI: LVDS supports high data transfer rates with low EMI, making it suitable for high-resolution displays and applications requiring long cable runs.

- Low Power Consumption: The differential signaling method reduces power consumption, which is beneficial for battery-operated devices.

- Fewer Pins: Compared to the parallel RGB interface, LVDS requires fewer pins, simplifying the PCB design.

- Complexity: It may require specialized drivers and receivers, adding complexity to the overall system design.

MIPI (Mobile Industry Processor Interface)

MIPI DSI (Display Serial Interface) is a high-speed serial interface standard designed for mobile and portable devices.

Characteristics:

- High Speed: MIPI DSI supports very high data rates, making it ideal for high-resolution and high-refresh-rate displays.

- Low Power Consumption: The serial nature of MIPI DSI reduces the number of signal lines, leading to lower power consumption.

- Compact Design: Fewer signal lines mean a more compact and simplified PCB layout, which is beneficial for space-constrained designs.

- Versatility: MIPI DSI is widely used in mobile devices, providing compatibility and flexibility in component selection.

SPI (Serial Peripheral Interface)

SPI is a widely used serial communication interface for short-distance data transmission, commonly found in low to medium-resolution displays.

Characteristics:

- Simplicity: SPI is easy to implement with a straightforward protocol and minimal hardware requirements.

- Flexibility: It supports multiple slave devices, making it suitable for applications requiring control over multiple peripherals.

- Moderate Speed: While not as fast as LVDS or MIPI DSI, SPI offers sufficient speed for many applications, especially low to medium-resolution displays.

- Limited Distance: SPI is generally used for short-distance communication due to potential signal degradation over longer distances.

Conclusion

Understanding the different input data interface types used in TFT LCD modules is essential for selecting the right display for your application. Each interface type—Parallel RGB, LVDS, MIPI DSI, and SPI—has its own set of characteristics, advantages, and limitations. By considering factors such as speed, power consumption, complexity, and application requirements, you can choose the most suitable interface for your specific needs. In the next blog, we will delve deeper into the practical applications and considerations for selecting these interfaces in various industries.
