Exploring the Specifications of the Loudspeaker Driver Units in the Dante PoE 6-Inch Two-Way Active Loudspeaker

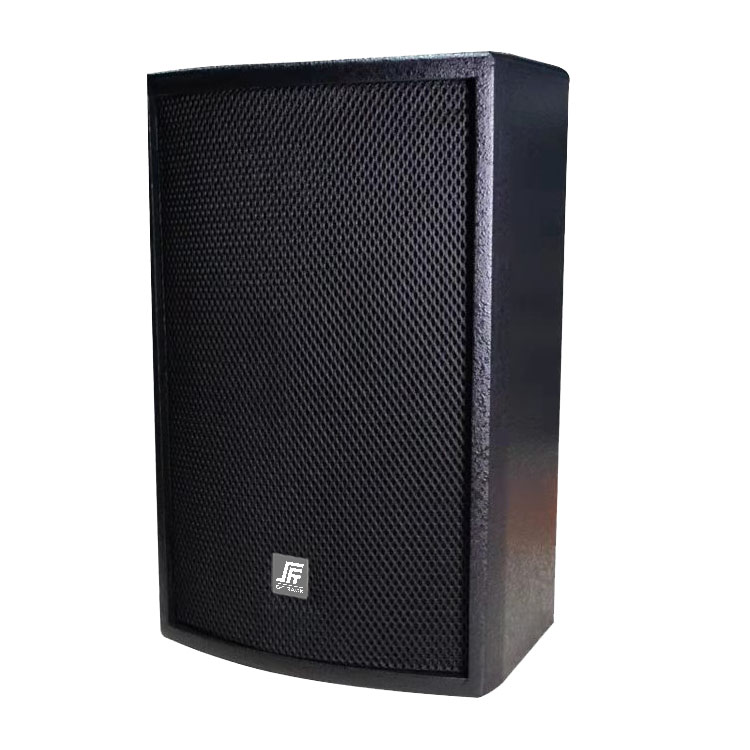

The Dante PoE 6-Inch Two-Way Active Loudspeaker is a cutting-edge audio solution that leverages Dante audio transmission technology and PoE (Power over Ethernet) capabilities. The heart of this loudspeaker lies in its loudspeaker driver units, which are responsible for converting electrical signals into sound waves. In this blog, we delve into the specifications of these driver units and how they contribute to the loudspeaker's overall performance.

1. Driver Unit Configuration

The Dante PoE 6-Inch Two-Way Active Loudspeaker typically employs a two-way driver unit configuration. This consists of:

Woofer: A 6-inch (or similar size) woofer handles the lower frequency range, delivering powerful bass and midrange sound.

Tweeter: A smaller tweeter driver, often around 1 inch in diameter, handles the higher frequencies, ensuring crisp and clear highs.

2. Specific Driver Unit Specifications

The exact specifications of the driver units may vary depending on the manufacturer and model, but here are some common specifications to consider:

Woofer

Diameter: 6.5" (165mm)

Material: Often made of lightweight yet rigid materials like polypropylene or metal to ensure accurate sound reproduction.

Power Handling: Capable of handling significant power levels to deliver loud and clear sound.

Tweeter

Diameter: 1" (25mm) or similar

Material: Silk, metal, or titanium are common choices for tweeter diaphragms, as they offer a smooth frequency response and excellent dispersion.

High-Frequency Extension: Able to reproduce frequencies up to 20kHz or beyond, ensuring crisp and detailed highs.

3. Frequency Response

The combined frequency response of the woofer and tweeter driver units determines the loudspeaker's overall frequency range. A typical frequency response for a 6-inch two-way loudspeaker might be something like 70Hz-20kHz (-10dB), ensuring accurate reproduction of audio content across the audible spectrum.

4. Impedance and Sensitivity

Impedance: The impedance rating of the loudspeaker driver units determines how much current they require to operate. Common impedance ratings for loudspeakers are 4Ω, 8Ω, or 16Ω. The Dante PoE 6-Inch Two-Way Active Loudspeaker is likely to have a rated impedance of 4Ω or 8Ω.

Sensitivity: Sensitivity measures how efficiently a loudspeaker converts electrical power into sound pressure level. A higher sensitivity rating indicates a louder output for a given input power. The sensitivity of the driver units in the Dante PoE 6-Inch Two-Way Active Loudspeaker is typically around 93dB/w/m or similar.

5. Conclusion

The loudspeaker driver units in the Dante PoE 6-Inch Two-Way Active Loudspeaker play a crucial role in delivering exceptional audio performance. Their specifications, including driver unit configuration, material choices, frequency response, impedance, and sensitivity, all contribute to the loudspeaker's ability to reproduce audio content accurately and with high fidelity. By understanding these specifications, you can gain a deeper insight into the capabilities and performance of this advanced audio solution.
