How the 500A DC1500V Circuit Breaker MCCB Protects Your High-Voltage DC Systems

When dealing with high-voltage DC systems, one of the most critical aspects of maintaining a safe and efficient setup is ensuring robust circuit protection. The 500A DC1500V Molded Case Circuit Breaker (MCCB) is specifically designed to meet the unique challenges posed by high-current and high-voltage direct current systems. But how does this breaker provide protection, and why is it indispensable in certain applications? This blog will examine how the 500A DC1500V MCCB helps protect high-voltage DC systems and why it’s essential for various industries.

Understanding the 500A DC1500V MCCB

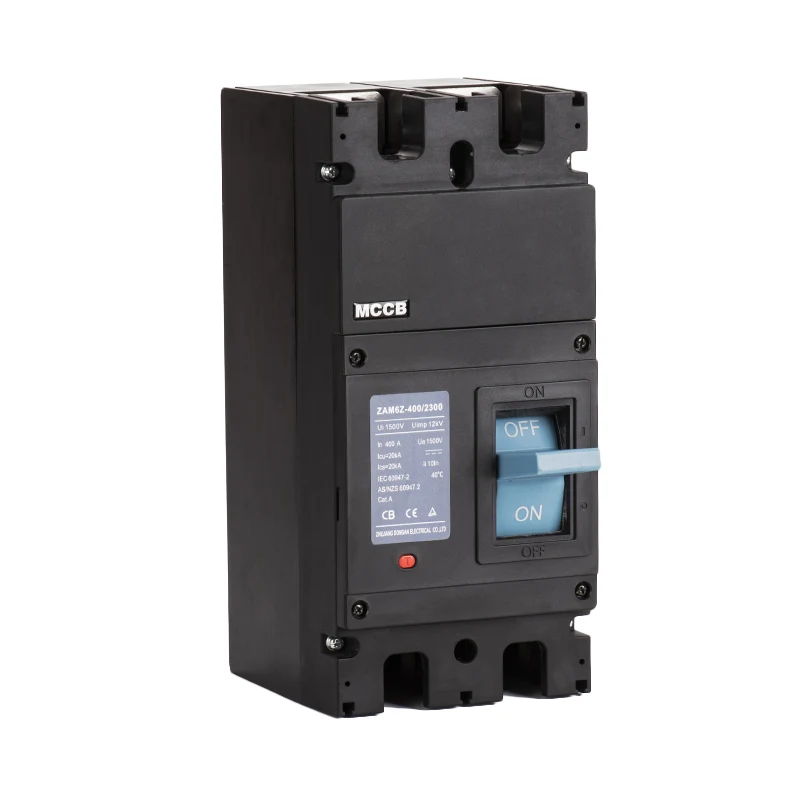

A 500A DC1500V MCCB is a circuit protection device designed to interrupt the flow of electricity in the event of a fault. This specific MCCB is rated to handle up to 500 amps of current at 1500 volts DC, making it ideal for use in high-power applications such as solar power generation systems, electric vehicle (EV) charging stations, and large-scale industrial equipment. The "Molded Case" refers to the protective casing that houses the internal components, offering both physical protection and enhanced durability.

How the 500A DC1500V MCCB Protects High-Voltage DC Systems

1. Prevents Overcurrent Damage

One of the primary functions of the 500A DC1500V MCCB is to protect electrical systems from overcurrent conditions. In a high-voltage DC system, excessive current flow can result from short circuits, wiring faults, or component failures. If not detected and mitigated promptly, overcurrent can lead to overheating, equipment damage, or even fires. The MCCB detects overcurrent situations and disconnects the circuit, effectively preventing these risks and ensuring the safety of both equipment and personnel.

2. Ensures Quick Response to Short Circuits

Short circuits are one of the most dangerous electrical faults in any system, especially in high-voltage DC environments. The 500A DC1500V MCCB features magnetic protection that responds quickly to short circuits by disconnecting the affected circuit within milliseconds. This rapid response helps prevent severe damage to the system, safeguarding critical components and ensuring operational continuity.

3. Enhances Safety with Thermal Protection

Thermal protection in the 500A DC1500V MCCB is designed to protect against overloads caused by prolonged high currents. When the breaker detects excessive heat generated by an overload, it activates a thermal mechanism that trips the breaker, cutting off the current. This added layer of protection ensures that the circuit is not exposed to dangerous heat levels, preventing overheating and reducing the risk of fire.

4. Improves System Efficiency and Longevity

By offering reliable protection against faults, the 500A DC1500V MCCB enhances the overall efficiency of high-voltage DC systems. With the breaker preventing damage and minimizing downtime, electrical systems operate more efficiently, and components last longer. This leads to cost savings and reduced maintenance efforts, making the system more reliable in the long term.

5. Durability for Harsh Environments

High-voltage DC systems are often exposed to harsh environmental conditions, such as extreme temperatures, humidity, or vibration. The 500A DC1500V MCCB is designed to withstand these conditions, ensuring that it continues to perform reliably over time. Its rugged construction and advanced materials help it operate in demanding settings like solar farms, industrial plants, and EV charging stations without failure.

Why Choose the 500A DC1500V MCCB?

In high-voltage DC systems, choosing the right circuit breaker is crucial to ensuring safety, reliability, and performance. The 500A DC1500V MCCB is built to handle the challenges posed by high current and voltage, offering superior protection for sensitive electrical equipment. Whether you’re managing a renewable energy system, an EV charging network, or industrial machinery, the 500A DC1500V MCCB is the ideal solution for safeguarding your high-power DC circuits.

The 500A DC1500V MCCB is an essential component for any high-voltage DC system that requires reliable circuit protection. Its advanced features, such as thermal protection, magnetic fault detection, and rapid response capabilities, ensure the safety and efficiency of electrical systems in critical applications. By investing in the right circuit breaker, you can protect your equipment, reduce downtime, and enhance system longevity, making the 500A DC1500V MCCB a must-have for high-power DC environments.
