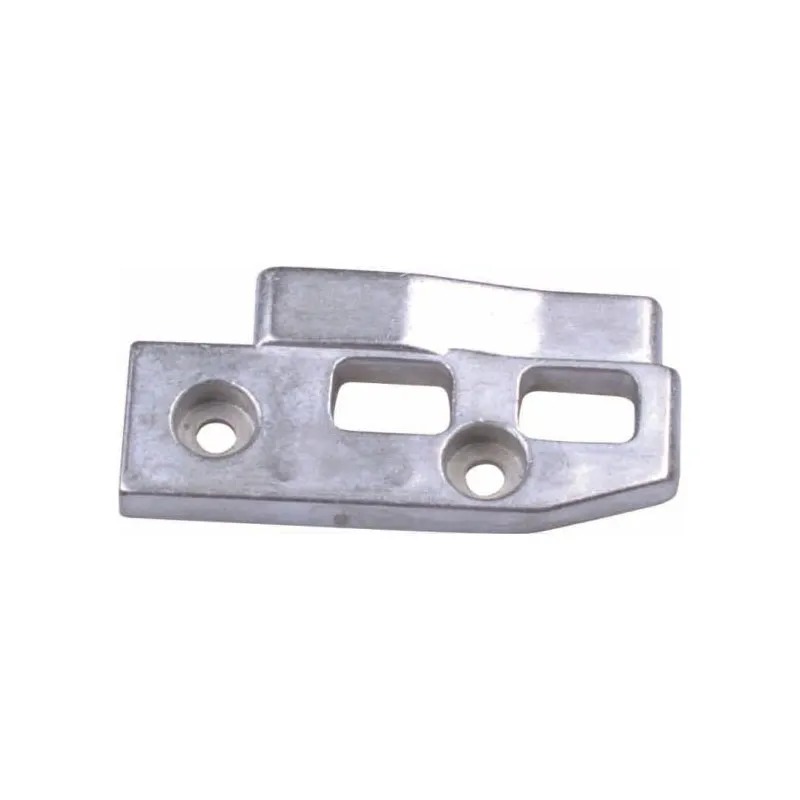

Low Voltage Switchgear Guide Rail: A Comprehensive Guide to Selection, Standards, and Innovations

In modern electrical systems, low voltage switchgear guide rails are indispensable. They ensure the precise alignment, secure mounting, and safe operation of electrical components. This blog delves deeper into the factors influencing their selection, the standards governing their use, and emerging innovations in guide rail technology.

Factors to Consider When Selecting Guide Rails

1. Material Selection

  - Steel: Offers high strength and durability, ideal for heavy-duty applications.

  - Aluminum: Lightweight and corrosion-resistant, suitable for environments with high moisture levels.

2. Load Capacity

  - Evaluate the weight of components the guide rail needs to support to ensure structural stability.

3. Environmental Conditions

  - Choose materials and coatings that withstand the operating environment (e.g., humidity, temperature, and corrosive conditions).

4. Compatibility with Standards

  - Ensure compliance with industry standards such as IEC 61439 or UL 891 for low voltage switchgear.

5. Ease of Installation and Maintenance

  - Opt for rails designed for quick assembly and easy component replacement.

Industry Standards for Guide Rails in Switchgear

Guide rails must comply with stringent standards to ensure safety and reliability:

- IEC 61439: Governs the design and testing of low voltage switchgear assemblies.

- UL 891: Covers dead-front switchboards, including mechanical requirements for components like guide rails.

- ISO 9001: Ensures quality management practices in the manufacturing of guide rails.

These standards emphasize material quality, structural integrity, and operational safety.

Emerging Innovations in Guide Rail Technology

1. Smart Materials

  - Use of composites and advanced alloys to enhance strength while reducing weight.

2. Modular Designs

  - Development of interchangeable and modular guide rails for customizable switchgear assemblies.

3. Integrated Insulation Systems

  - Coatings and built-in insulation features to improve electrical safety without adding bulk.

4. Digital Integration

  - Embedded sensors for real-time monitoring of mechanical stresses and thermal expansion in critical systems.

Tips for Maintaining Guide Rails

1. Regular Inspection

  - Check for signs of wear, corrosion, or misalignment to prevent system failures.

2. Cleaning and Lubrication

  - Remove dust and debris and apply suitable lubricants to sliding components to maintain functionality.

3. Tightening Fasteners

  - Periodically tighten screws and bolts to ensure stability.

4. Replacement Schedule

  - Replace worn or damaged guide rails promptly to avoid compromising the entire system.

Low voltage switchgear guide rails are far more than a supporting element; they are integral to the safety and efficiency of electrical systems. By carefully considering factors such as material, load capacity, and compliance with standards, engineers and facility managers can enhance the performance and longevity of their switchgear assemblies. With ongoing innovations in materials and design, guide rails are poised to play an even more critical role in the future of electrical distribution systems.
