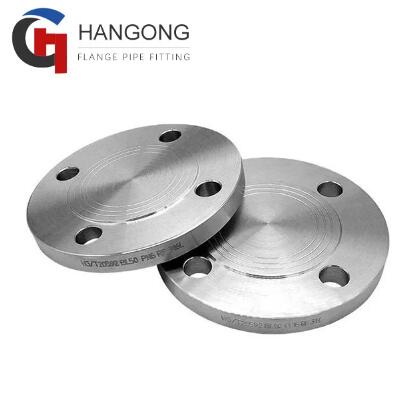

Selecting Duplex Steel S31803 Blind Flanges: Key Considerations for Engineers

Choosing the right blind flange for your piping system is crucial to ensure the safety, reliability, and longevity of your installation. Duplex Steel S31803, known for its superior strength and excellent corrosion resistance, is a popular choice for many demanding applications. However, selecting the right Duplex Steel S31803 blind flange requires a thorough understanding of various factors that influence its performance. In this blog, we'll guide you through the key considerations engineers should keep in mind when selecting Duplex Steel S31803 blind flanges.

Understanding Duplex Steel S31803 Properties

Before diving into the selection process, it's important to understand the properties of Duplex Steel S31803 that make it a preferred material for blind flanges:

- Dual-Phase Microstructure: The roughly 50/50 mix of austenite and ferrite phases gives S31803 its unique properties, including high strength, toughness, and resistance to stress corrosion cracking.

- Corrosion Resistance: Duplex S31803 offers excellent resistance to a wide range of corrosive environments, including those rich in chlorides, which are particularly aggressive to standard stainless steels.

- High Mechanical Strength: With a yield strength nearly double that of austenitic stainless steels, Duplex S31803 is ideal for high-pressure applications, reducing the need for thicker or heavier components.

Key Considerations for Selecting Duplex Steel S31803 Blind Flanges

1. Application Environment

  The environment in which the flange will be used is perhaps the most critical factor. Consider the following:

  - Corrosive Media: If the application involves exposure to aggressive chemicals, seawater, or other corrosive substances, Duplex Steel S31803 is a strong candidate due to its superior corrosion resistance.

  - Temperature: Duplex S31803 performs well in a wide temperature range, but if the application involves extremely high temperatures, ensure the material's limits are suitable for your specific requirements.

2. Pressure Requirements

  Duplex Steel S31803 blind flanges are known for their high strength, but it's essential to match the pressure rating of the flange with the operating pressure of the system. Flanges are rated according to their ability to withstand internal pressure, and selecting a flange with an appropriate rating is crucial for safety.

3. Industry Standards and Certifications

  Ensure that the blind flanges you choose meet the relevant industry standards and certifications. Some of the common standards include:

  - ASME B16.5: For pipe flanges and flanged fittings.

  - ASTM A182: For forged or rolled alloy and stainless steel pipe flanges, forged fittings, and valves.

  - NORSOK M-630: A standard used in the oil and gas industry for material specifications.

  Compliance with these standards ensures that the flanges have been manufactured and tested according to stringent quality and performance criteria.

4. Dimensional Compatibility

  It's essential to ensure that the Duplex Steel S31803 blind flange you select is dimensionally compatible with the existing piping system. Consider factors such as flange size, bolt hole alignment, and face type (raised face, flat face, etc.) to ensure a proper fit.

5. Long-Term Performance and Maintenance

  Duplex Steel S31803 flanges are chosen for their durability and low maintenance needs, but it's important to consider the long-term performance in your specific application. Factors such as cyclic loading, thermal cycling, and exposure to corrosive environments can impact the longevity of the flange.

  - Fatigue Resistance: For applications involving cyclic loading, consider the fatigue resistance of the material to prevent premature failure.

  - Inspection and Maintenance: Regular inspection and maintenance are essential to ensure the continued performance of the flange over its service life.

6. Cost vs. Performance

  While Duplex Steel S31803 is generally more expensive than standard stainless steels, its performance in challenging environments often justifies the cost. However, it’s important to evaluate the overall cost-performance ratio, considering the long-term benefits such as reduced maintenance, longer service life, and enhanced safety.

Conclusion

Selecting the right Duplex Steel S31803 blind flange involves careful consideration of the application environment, pressure requirements, industry standards, dimensional compatibility, and long-term performance. By taking these factors into account, engineers can make informed decisions that ensure the safety, reliability, and efficiency of their piping systems. Whether for use in the oil and gas industry, chemical processing, or marine applications, Duplex Steel S31803 blind flanges provide a robust solution for demanding conditions.
