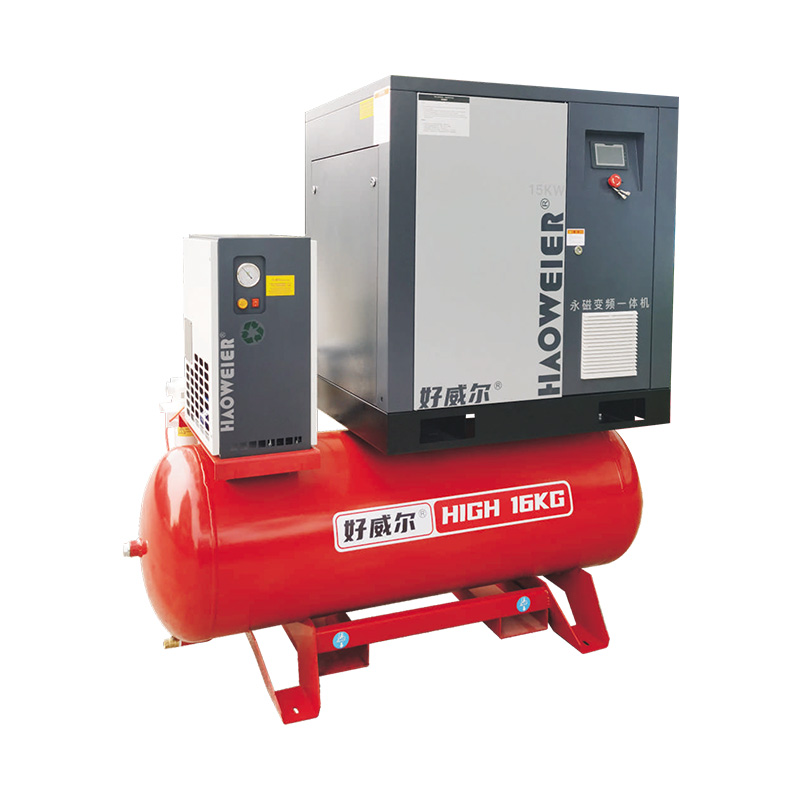

The working pinciples of Permanent Magnet Variable Frequency Air Compressor

Here’s a clear explanation of the working principles of a Permanent Magnet Variable Frequency Air Compressor (PM VFD air compressor):

1. Permanent Magnet Motor:

Instead of using a traditional induction motor, these compressors use a permanent magnet synchronous motor (PMSM).

The rotor has built-in permanent magnets, which creates a constant magnetic field.

Compared to standard motors, PMSMs are more energy-efficient and maintain high torque at low speeds.

2. Variable Frequency Drive (VFD):

A VFD is an electronic controller that adjusts the frequency and voltage supplied to the motor.

This allows smooth speed control: speeding up or slowing down the motor depending on the air demand.

By precisely matching the motor speed to the air usage, it avoids wasteful energy consumption (unlike traditional "start/stop" compressors).

3. Air End Compression:

The motor drives the air end (typically a screw element) to compress air.

Because the motor speed can change, the compression rate automatically adjusts based on real-time air demand.

This keeps air pressure stable, avoiding large pressure swings that can damage equipment.

4. Energy Saving Principle:

When less air is needed, the motor slows down — using much less electricity.

When more air is needed, it speeds up — providing only as much power as necessary.

This can save 30–50% of energy compared to traditional fixed-speed compressors.

5. Soft Start:

VFD allows a smooth ramp-up of motor speed when starting, eliminating inrush currents (big spikes in electricity when motors start).

This extends motor life and reduces stress on the power system.

In Short:

A Permanent Magnet VFD Air Compressor uses a permanent magnet motor controlled by a variable frequency drive to adjust motor speed and air output continuously based on demand, resulting in stable pressure, high efficiency, and significant energy savings.
