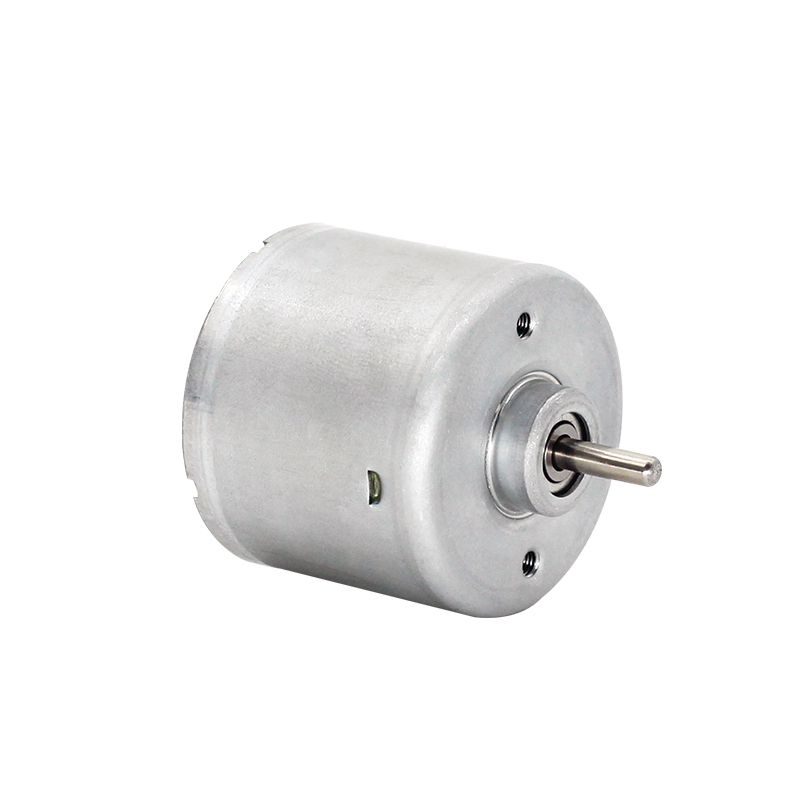

Unraveling the Mystery: The Operating Principle of the 36mm Brushless DC Motor

The 36mm Brushless DC Motor stands as a marvel of engineering, powering a myriad of applications with precision and efficiency. But what lies beneath its sleek exterior? In this blog, we delve into the operating principle behind the 36mm Brushless DC Motor, unraveling the intricacies of its design and uncovering the magic that drives its performance.

Understanding the Basics

Before diving into the specifics, let's establish a foundational understanding of how brushless DC motors operate. Like their brushed counterparts, brushless DC motors utilize electromagnetic fields to generate motion. However, they do so without the need for physical brushes and commutators, relying instead on electronic control systems to regulate current flow.

Key Components

At the heart of the 36mm Brushless DC Motor are three essential components:

1. Stator: The stationary part of the motor that houses a series of electromagnetic coils. These coils produce a rotating magnetic field when energized, which interacts with the rotor to generate motion.

2. Rotor: The rotating part of the motor typically composed of permanent magnets. As the magnetic field produced by the stator rotates, it induces a corresponding magnetic field in the rotor, causing it to turn.

3. Electronic Control System: The brains behind the operation, the electronic control system precisely regulates the timing and intensity of current supplied to the stator coils. This control allows for smooth and efficient rotation of the motor.

Operating Principle

The operating principle of the 36mm Brushless DC Motor can be summarized in the following steps:

1. Initialization: The electronic control system determines the initial position of the rotor relative to the stator using sensors or other feedback mechanisms.

2. Sequential Energization: The control system selectively energizes the stator coils in a predetermined sequence, creating a rotating magnetic field that interacts with the permanent magnets in the rotor.

3. Continuous Adjustment: As the rotor rotates, the control system continuously adjusts the timing and intensity of current supplied to the stator coils to maintain smooth and precise motion.

4. Feedback Control: Feedback mechanisms such as Hall effect sensors or encoders provide real-time information about the position and speed of the rotor, allowing the control system to make accurate adjustments as needed.

Advantages of Brushless Design

The brushless design of the 36mm Brushless DC Motor offers several advantages over traditional brushed motors:

- Reduced Friction: Without brushes to make physical contact with the commutator, brushless motors operate with minimal friction, resulting in higher efficiency and longer lifespan.

- Precise Control: The electronic control system allows for precise control over speed, torque, and position, enabling smoother and more accurate motion.

- Lower Maintenance: With fewer moving parts prone to wear and tear, brushless motors require minimal maintenance, reducing downtime and associated costs.

Conclusion

In conclusion, the operating principle behind the 36mm Brushless DC Motor is a testament to the ingenuity and precision of modern engineering. By harnessing the power of electromagnetic fields and electronic control systems, this compact motor delivers unparalleled performance and efficiency across a wide range of applications. As technology continues to advance, the brushless DC motor will undoubtedly remain a cornerstone of motion control, driving progress and innovation in countless industries.
